Design series · Single level · 7.5 × 16.8 m
Meet Shed Home #12.
- 3
- Bedrooms
- 2
- Bathrooms
- 126 m²
- Slab footprint
- $54,175
- Shell kit from · inc GST
The design
The 16.8-metre single-level shouse.
Shed Home #12 measures 16.8 × 7.5 metres across a 126.1 m² slab — 3 bedrooms, 2 bathrooms, single level living. The plan leads with a 28.4 m² living, 18.4 m² bedroom and 15.9 m² master bedroom. Published straight from the Shouse Designer — every figure on this page updates with the design.
- 3 bed, 2 bath
- 126.1 m² slab · 7.5 × 16.8 m
- Single level

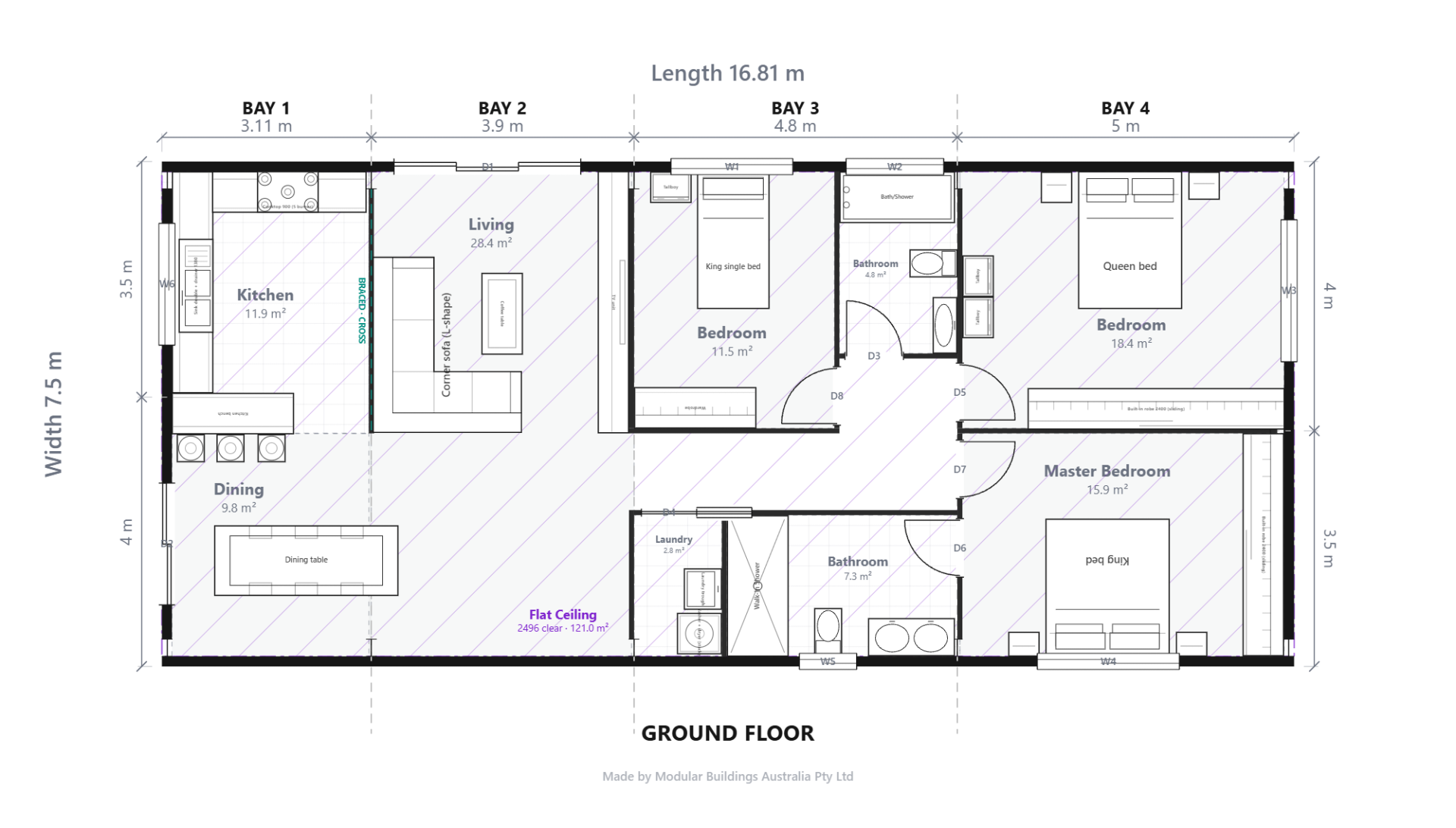

Floor plan
Inside the Shed Home #12.
Concept floor plan from the Shouse Designer — every wall, window and door is live and editable when you open it in the tool.
Kit prices are “from” prices including GST. Engineered shell kit — frame, roofing, cladding, flashings and fasteners. Delivery, slab, window and door units, services, labour and internal fit-out are additional. Your kit price is confirmed by a formal quotation after site-specific engineering.
Specifications
Counted from the model, not the brochure.
Every figure below is derived straight from the engineered design — rooms, openings, heights and colours — and updates automatically whenever the design does.
- 16.8 × 7.5 m
- Footprint
- 126.1 m²
- Slab area
- 3.2 m
- Eave height
- 5.2 m
- Ridge height
- Skillion 15°
- Roof
- Single
- Storey
- Wall cladding
- Corrugated 0.42 BMT
- Roof sheeting
- Corrugated 0.42 BMT
Shown inWalls · Pale EucalyptRoof · Pale Eucalypt— yours in any of the 22 COLORBOND® colours, picked live in the Designer.
GROUND FLOOR110.4 m² rooms, net
- Living3.9 × 7.2 m28.4 m²
- Bedroom4.8 × 3.8 m18.4 m²
- Master Bedroom4.8 × 3.3 m15.9 m²
- Kitchen3.1 × 3.9 m11.9 m²
- Bedroom3.0 × 3.8 m11.5 m²
- Dining3.0 × 3.3 m9.8 m²
- Bathroom3.5 × 2.1 m7.3 m²
- Bathroom1.8 × 2.7 m4.8 m²
- Laundry1.3 × 2.1 m2.8 m²
Windows & doors
- W1Sliding window2110 × 900 mm × 2
- W2Sliding window1810 × 900 mm × 2
- W3Sliding window1450 × 900 mm
- W4Sliding window850 × 900 mm
- D1Sliding door2772 × 2100 mm
- D2Sliding door1810 × 2100 mm
+ 6 internal doors
Room schedule9 rooms
GROUND FLOOR110.4 m² rooms, net
- Living3.9 × 7.2 m28.4 m²
- Bedroom4.8 × 3.8 m18.4 m²
- Master Bedroom4.8 × 3.3 m15.9 m²
- Kitchen3.1 × 3.9 m11.9 m²
- Bedroom3.0 × 3.8 m11.5 m²
- Dining3.0 × 3.3 m9.8 m²
- Bathroom3.5 × 2.1 m7.3 m²
- Bathroom1.8 × 2.7 m4.8 m²
- Laundry1.3 × 2.1 m2.8 m²
Windows & doors8 openings
- W1Sliding window2110 × 900 mm × 2
- W2Sliding window1810 × 900 mm × 2
- W3Sliding window1450 × 900 mm
- W4Sliding window850 × 900 mm
- D1Sliding door2772 × 2100 mm
- D2Sliding door1810 × 2100 mm
+ 6 internal doors
Live 3D
Walk around the Shed Home #12.
The real model, straight from the Shouse Designer — orbit it, and flick through genuine COLORBOND® colours live.
