Shed Home #03 — concept render from the Shouse Designer
Design series · Two storey · 9.0 × 16.0 m

Meet Shed Home #03.

Open the Shed Home #03 in the DesignerEnquire
3
Bedrooms
2
Bathrooms
255 m²
Total floor area
$96,800
Shell kit from · inc GST
The design

Double-height drama, mezzanine living.

Shed Home 03 is the entertainer. A 33.8 m² living room under a double-height void with a balcony over, an island kitchen with walk-in pantry, and a mezzanine level adding another hundred square metres of usable space. This is the one people walk into and go quiet.

  • Double-height void
  • Walk-in pantry
  • 105 m² mezzanine level

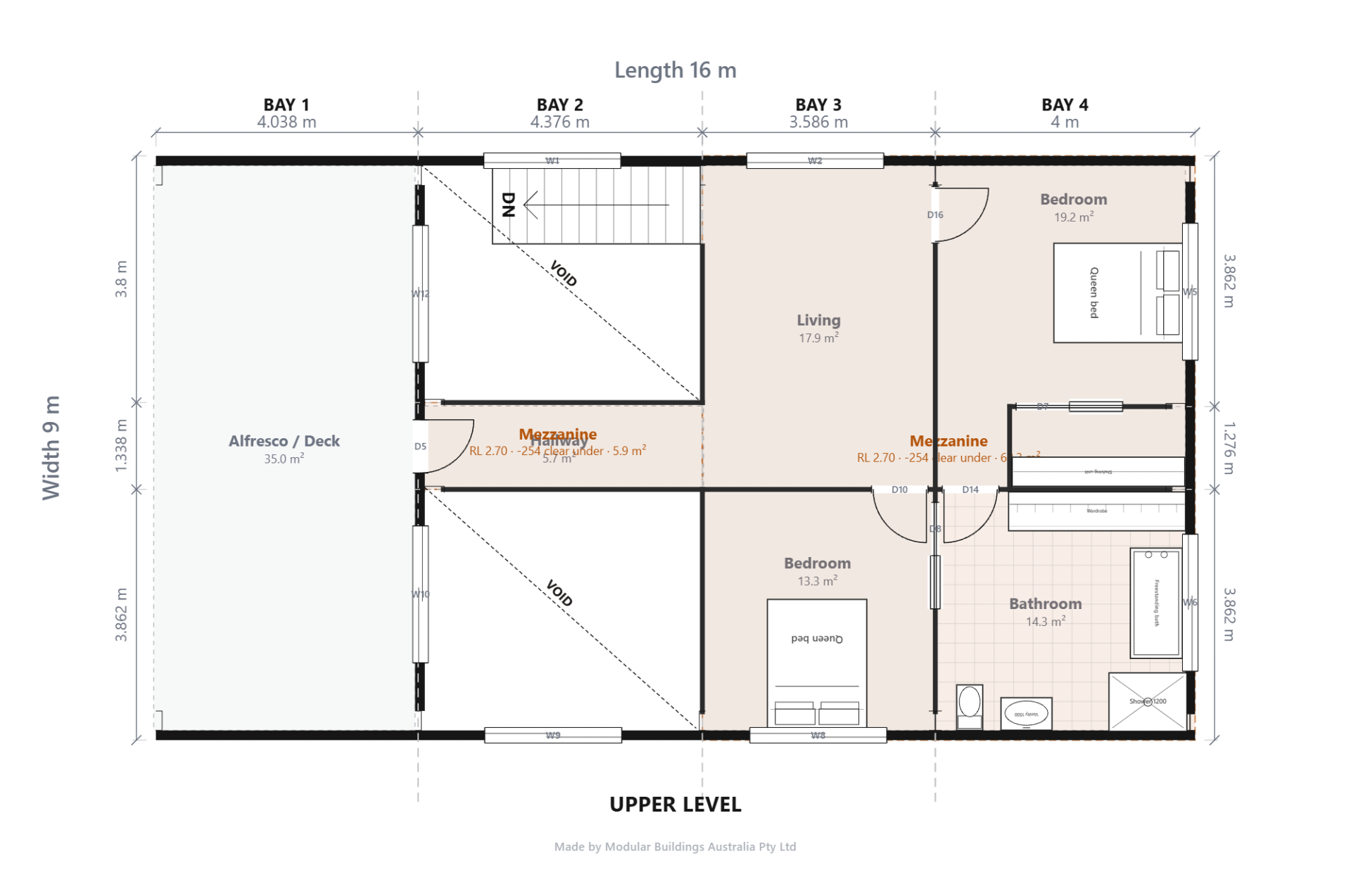

Floor plan

Inside the Shed Home #03.

Concept floor plan from the Shouse Designer — every wall, window and door is live and editable when you open it in the tool.

Kit prices are “from” prices including GST. Engineered shell kit — frame, roofing, cladding, flashings and fasteners. Delivery, slab, window and door units, services, labour and internal fit-out are additional. Your kit price is confirmed by a formal quotation after site-specific engineering.

Specifications

Counted from the model, not the brochure.

Every figure below is derived straight from the engineered design — rooms, openings, heights and colours — and updates automatically whenever the design does.

16.0 × 9.0 m
Footprint
144 m²
Slab area
74.2 m²
Upper floor (gross)
5.2 m
Eave height
7.7 m
Ridge height
Gable 30°
Roof
Two
Storeys
Wall cladding
Corrugated 0.42 BMT
Roof sheeting
Corrugated 0.42 BMT
Shown inWalls · SurfmistRoof · Surfmist— yours in any of the 22 COLORBOND® colours, picked live in the Designer.
Room schedule15 rooms · 218.2 m² total
GROUND FLOOR137.8 m² rooms, net
  • Living3.9 × 8.7 m33.8 m²
  • Living4.4 × 5.1 m22.5 m²
  • Kitchen4.4 × 3.9 m16.9 m²
  • Study / Office3.9 × 3.7 m14.1 m²
  • WALK IN PANTRY3.6 × 3.7 m13.3 m²
  • Bedroom3.6 × 3.7 m13.1 m²
  • Hallway7.4 × 1.3 m9.5 m²
  • Laundry2.0 × 3.7 m7.5 m²
  • Bathroom1.8 × 3.9 m7.1 m²
UPPER FLOOR105.4 m² rooms, net
  • Alfresco / Deck4.0 × 8.7 m35 m²
  • Bedroom3.9 × 5.0 m19.2 m²
  • Living3.6 × 5.0 m17.9 m²
  • Bathroom3.9 × 3.7 m14.3 m²
  • Bedroom3.6 × 3.7 m13.3 m²
  • Hallway4.4 × 1.3 m5.7 m²
144 m² slab + 74.2 m² upper floor (gross) · 218.2 m² total floor area. Room areas above are net of walls; the slab figure is the footprint.
Windows & doors17 openings
  • W1Sliding window2110 × 1200 mm
  • W2Sliding window2110 × 900 mm × 10
  • W3Sliding window1210 × 600 mm
  • D1Sliding door2772 × 2100 mm
  • D2Sliding door2410 × 2100 mm
  • D3Entry door820 × 2040 mm × 3
+ 11 internal doors
Live 3D

Walk around the Shed Home #03.

The real model, straight from the Shouse Designer — orbit it, and flick through genuine COLORBOND® colours live.

Built · Weymouth, Tasmania

Someone already lives in a Shed Home #03.

Not a render, not a visualisation — the same design, delivered as a kit and standing on a real block. Photographs from the build.

The portal frame of Shed Home #03 standing on site
The kit, standing
Shed Home #03 at lock-up, clad and roofed, seen from the street
Lock-up
The plastered double-height void inside Shed Home #03
The void
The furnished living room of the finished Shed Home #03
Lived in
See the whole build
Keep exploring

More from the series.

Browse all designs

Make the Shed Home #03 yours.

Open the Shed Home #03 in the Shouse Designer, shape it around your life and your block, and take it up the ladder when you're ready — the formal kit quotation follows site-specific engineering.

Open the Shed Home #03 in the DesignerSee what's in the kit

Aussie-made · BlueScope steel · Nationwide delivery
