Design series · Single level + mezzanine · 7.0 × 14.0 m
Meet Shed Home #08.
- 3
- Bedrooms
- 1
- Bathrooms
- 145 m²
- Total floor area
- $71,170
- Shell kit from · inc GST
The design
The 14-metre single-level shouse.
Shed Home #08 measures 14 × 7 metres across a 98 m² slab — 3 bedrooms, 1 bathroom, single level living. The plan leads with a 25.8 m² bedroom, 20.1 m² kitchen and 19.1 m² living. Plus a 46.9 m² mezzanine. Published straight from the Shouse Designer — every figure on this page updates with the design.
- 3 bed, 1 bath
- 98 m² slab · 7.0 × 14.0 m
- 46.9 m² mezzanine

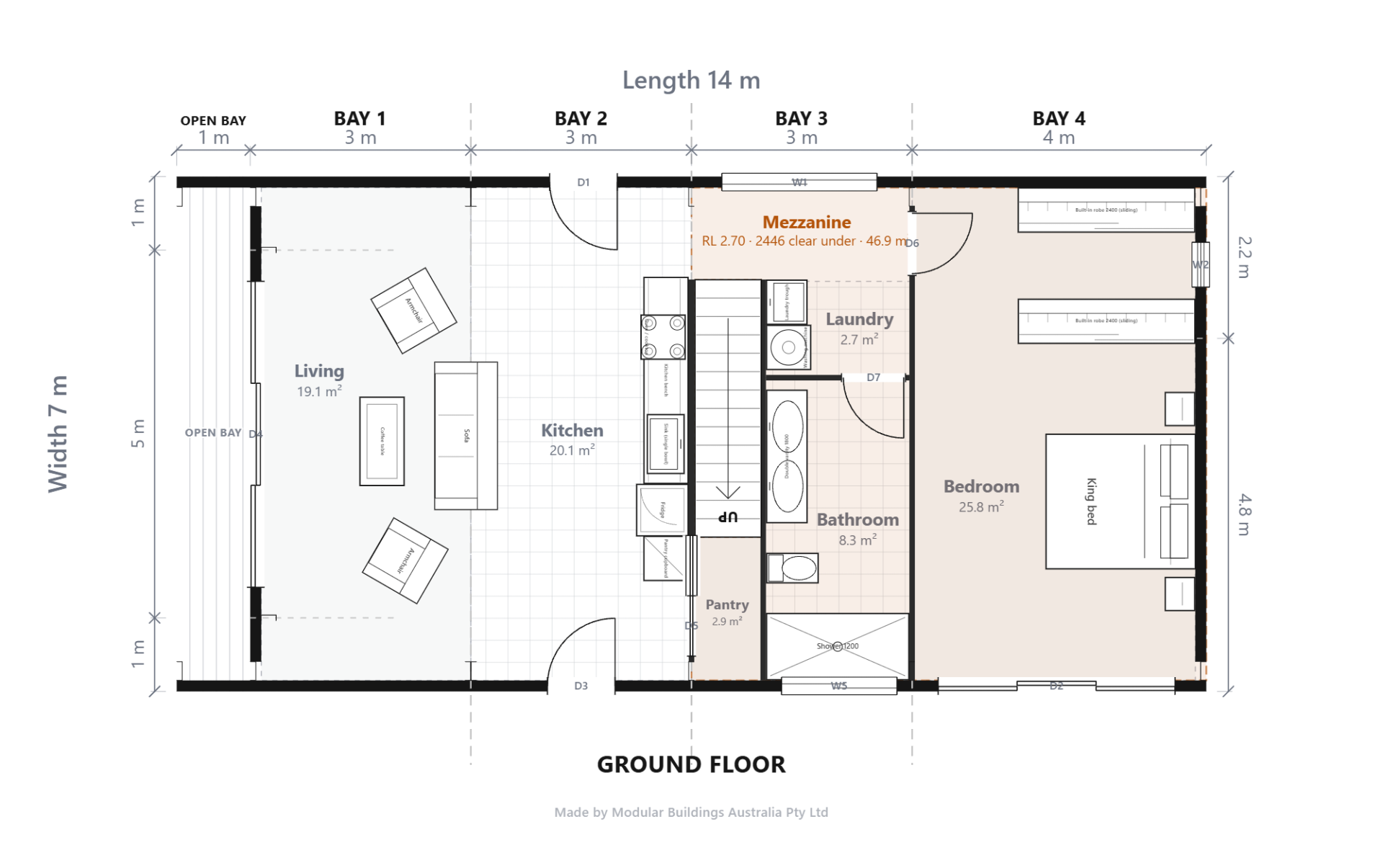

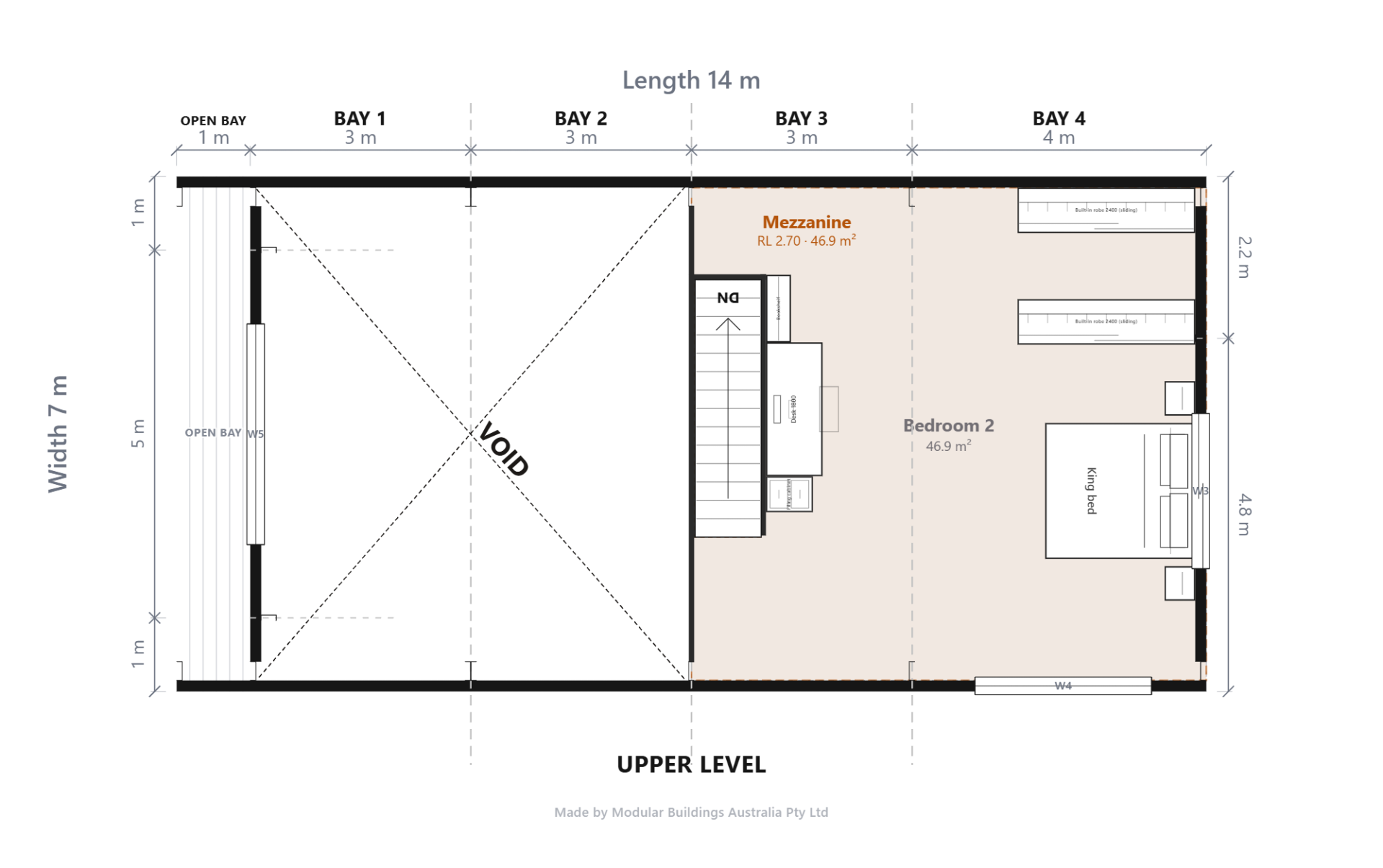

Floor plan
Inside the Shed Home #08.
Concept floor plan from the Shouse Designer — every wall, window and door is live and editable when you open it in the tool.
Kit prices are “from” prices including GST. Engineered shell kit — frame, roofing, cladding, flashings and fasteners. Delivery, slab, window and door units, services, labour and internal fit-out are additional. Your kit price is confirmed by a formal quotation after site-specific engineering.
Specifications
Counted from the model, not the brochure.
Every figure below is derived straight from the engineered design — rooms, openings, heights and colours — and updates automatically whenever the design does.
- 14.0 × 7.0 m
- Footprint
- 98 m²
- Slab area
- 46.9 m²
- Upper floor (gross)
- 5.4 m
- Eave height
- 8.9 m
- Ridge height
- Gable 45°
- Roof
- Two
- Storeys
- Wall cladding
- Corrugated 0.42 BMT
- Roof sheeting
- Corrugated 0.42 BMT
Shown inWalls · Night SkyRoof · Night Sky— yours in any of the 22 COLORBOND® colours, picked live in the Designer.
GROUND FLOOR78.9 m² rooms, net
- Bedroom3.9 × 6.7 m25.8 m²
- Kitchen3.0 × 6.7 m20.1 m²
- Living2.9 × 6.7 m19.1 m²
- Bathroom2.0 × 4.1 m8.3 m²
- Pantry1.0 × 3.0 m2.9 m²
- Laundry2.0 × 1.3 m2.7 m²
UPPER FLOOR46.9 m² rooms, net
- Bedroom 27.0 × 6.7 m46.9 m²
98 m² slab + 46.9 m² upper floor (gross) · 144.9 m² total floor area. Room areas above are net of walls; the slab figure is the footprint.
Windows & doors
- W1Fixed window3000 × 900 mm
- W2Fixed window2400 × 900 mm
- W3Sliding window2110 × 900 mm × 2
- W4Double-hung window610 × 1800 mm
- D1Stacker door4160 × 2100 mm
- D2Sliding door3222 × 2100 mm
- D3Entry door920 × 2040 mm × 2
+ 3 internal doors
Room schedule7 rooms · 144.9 m² total
GROUND FLOOR78.9 m² rooms, net
- Bedroom3.9 × 6.7 m25.8 m²
- Kitchen3.0 × 6.7 m20.1 m²
- Living2.9 × 6.7 m19.1 m²
- Bathroom2.0 × 4.1 m8.3 m²
- Pantry1.0 × 3.0 m2.9 m²
- Laundry2.0 × 1.3 m2.7 m²
UPPER FLOOR46.9 m² rooms, net
- Bedroom 27.0 × 6.7 m46.9 m²
98 m² slab + 46.9 m² upper floor (gross) · 144.9 m² total floor area. Room areas above are net of walls; the slab figure is the footprint.
Windows & doors9 openings
- W1Fixed window3000 × 900 mm
- W2Fixed window2400 × 900 mm
- W3Sliding window2110 × 900 mm × 2
- W4Double-hung window610 × 1800 mm
- D1Stacker door4160 × 2100 mm
- D2Sliding door3222 × 2100 mm
- D3Entry door920 × 2040 mm × 2
+ 3 internal doors
Live 3D
Walk around the Shed Home #08.
The real model, straight from the Shouse Designer — orbit it, and flick through genuine COLORBOND® colours live.
